Array and Array Item Editable Regions are one type of Editable Region you can add to your layout and HTML-like files to enable visual editing. Array Editable Regions allow you to add, remove, and reorder array values stored in structured data or front matter that populate templating in layout files. You can use Array Editable Regions to edit array components or support page building in the Visual Editor.
To avoid misconfiguration issues where CloudCannon cannot find the data property you want to edit, always add Editable Regions to values closest to the root of the file first (i.e., work from parent elements towards child elements).
These instructions assume you have configured your build settings and are comfortable editing HTML layouts, either in CloudCannon's Source Editor or your local development environment.
To configure Array Editable Regions in the Visual Editor:
- Identify the file you want to which you want to add an Array Editable Regions.
- Open the file in CloudCannon's Source Editor or your local development environment.
- Identify the templating responsible for looping over your array and add the
data-editable="array"HTML attribute to the immediate parent element tag. If no appropriate tags are available, wrap the templating in the<editable-array>web component. - Add the
data-prop=""HTML attribute to the same DOM element, or to the<editable-array>web component. The value ofdata-propshould be the path the to data property you want to edit. - If your array can contain array items with different structures, you must add the
data-id-keyHTML attribute to the same DOM element, or to the<editable-array>web component. The value ofdata-id-keyshould be the structured data key that stores the name of your array item (e.g.,block_name). - Identify the HTML attribute within your array templating that contains your array item and add the
data-editable="array-item"HTML attribute. If no appropriate tags are available, wrap the content of the array item in the<editable-array-item>web component. - If your array can contain array items with different structures, you must add the
data-idHTML attribute to the same DOM element, or to the<editable-array-item>web component. The value ofdata-idshould be a templating that will populate with the value of the ID key (i.e.{block_name}). - Optional. If you also want to edit the contents of each array item in the Visual Editor, add Text Editable Regions or Image Editable Regions to the content inside each array item.
- Save the change to your Site. CloudCannon will automatically rebuild your Site.
When you open the file in the Visual Editor, CloudCannon will show yellow Editable Region boxes around each array item. When you hover an array item, CloudCannon will show a small toolbar in the top right, containing an Edit button and a Drag handler. Clicking the Edit button will open a dropdown with options to move an array item one position to the left or right, and to delete the item. Clicking and holding the Drag handler allows you to visually move an array item to any position in the array.
Where should the Array and Array Item Editable Regions go?
The Array attribute or web component should be the immediate parent element of your array templating. The Array Item attribute or web component should be the first child element of your array templating. This way, Array and Array Item should flank the templating for looping over your array.
Try to avoid any nested elements between them; they should be as close together as possible, regardless of whether you use HTML attributes, web components, or both.
Examples#
Here are a few examples of different Array Editable Regions.
In this example of a simple array, the testimonials.md file contains array items with the same structure.
---
layout: ../layouts/TestimonialsLayout.astro
testimonials:
- image: /astro-blog/blog-placeholder-2.jpg
image_alt: Profile photo of D. Gale
name: D. Gale
job_title: CEO at Yellow Brick Industries
quote: >-
"In pretium libero sed velit posuere sagittis."
- image: /astro-blog/blog-placeholder-3.jpg
image_alt: Profile photo of S. Crow
name: S. Crow
job_title: CBO at Yellow Brick Industries
quote: >-
"Mauris at augue quis orci egestas eu in nulla."
- image: /astro-blog/blog-placeholder-4.jpg
image_alt: Profile photo of T. Man
name: T. Man
job_title: CHO at Yellow Brick Industries
quote: >-
"Nunc ut sem vitae tortor volutpat varius."
- image: /astro-blog/blog-placeholder-5.jpg
image_alt: Profile photo of C. Lion
name: C. Lion
job_title: CCO at Yellow Brick Industries
quote: >-
"Aenean pharetra orci ac tincidunt lobortis."
---
---
const { testimonials } = Astro.props.frontmatter;
---
<!doctype html>
<html lang="en">
<body>
<main>
<section>
<ul data-editable="array" data-prop="testimonials">
{
testimonials.map((testimonial) => (
<li data-editable="array-item" >
{testimonial.image && (
<img
data-editable="image"
data-prop-src="image"
data-prop-alt="image_alt"
width={720}
height={360}
src={testimonial.image}
alt={testimonial.image_alt}
/>
)}
<h4 class="name" data-editable="text" data-prop="name">{testimonial.name}</h4>
<p class="job" data-editable="text" data-prop="job_title">{testimonial.job_title}</p>
<p class="quote" data-editable="text" data-prop="quote">{testimonial.quote}</p>
</li>
))
}
</ul>
</section>
</main>
</body>
</html>
The data-editable attribute defines what kind of data this element contains, and the data-prop attribute defines the path to the data we want to edit. In this case, we want an Array Editable Region, so the value of data-editable is array, and we want to edit the testimonials structured data key in the file front matter.
This <img> element contains data-editable="image", data-prop-src="image", and data-prop-alt="image_alt" to define an Image Editable Region.
This <h4> element contains data-editable="text" and data-prop="name" to define a Text Editable Region.
This <p> element contains data-editable="text" and data-prop="job_title" to define a Text Editable Region.
This <p> element contains data-editable="text" and data-prop="quote" to define a Text Editable Region.

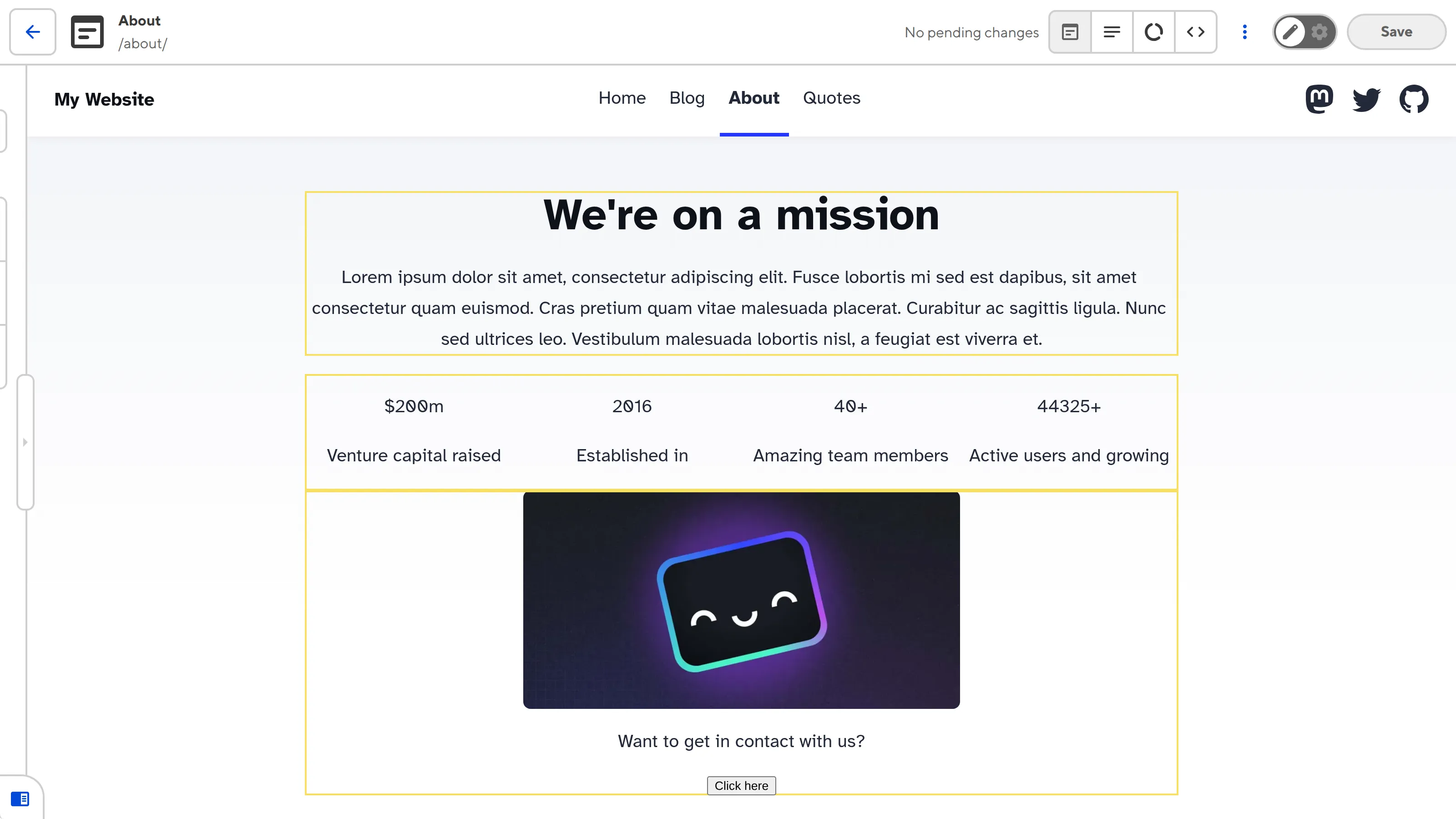

In this example of a complex array, the about.md file contains array items with different structures.
---
layout: ../layouts/AboutLayout.astro
contentBlocks:
- _name: HeroBlock
title: We're on a mission
description: Lorem ipsum dolor sit amet, consectetur adipiscing elit. Fusce lobortis mi sed est dapibus, sit amet consectetur quam euismod. Cras pretium quam vitae malesuada placerat. Curabitur ac sagittis ligula. Nunc sed ultrices leo. Vestibulum malesuada lobortis nisl, a feugiat est viverra et.
- _name: StatsBlock
stats:
- number: $200m
text: Venture capital raised
- number: "2016"
text: Established in
- number: 40+
text: Amazing team members
- number: 44325+
text: Active users and growing
- _name: ContactBlock
text: Want to get in contact with us?
button: Click here
image: https://preview.astro.new/blog/_astro/blog-placeholder-about.BtEdEmGp_1cKsnD.webp
---
---
const components = {};
const componentImports = import.meta.glob("../components/**/*.astro", {
eager: true,
});
Object.entries(componentImports).forEach(([path, obj]) => {
const name = path.replace("../components/", "").split(".")[0];
components[name] = obj.default;
});
const { contentBlocks } = Astro.props.frontmatter;
---
<!doctype html>
<html lang="en">
<body>
<main>
<section data-prop="contentBlocks" data-id-key="_name">
{
contentBlocks.map((block) => {
const Component = components[block._name];
return <editable-array-item data-id={block._name}><Component {...block} /></editable-array-item>;
})
}
</section>
</main>
</body>
</html>
Misconfigured Array Editable Regions#
CloudCannon will display an orange warning box in the Visual Editor if your Array Editable Regions is misconfigured.
Array Editable Regions are misconfigured if:
- You did not define the
data-propHTML attribute. - The Editable Region has an invalid data type (e.g., your Text region has a number or object, instead of a string).
- You have one or more orphaned Array Item Editable Regions that are not contained within an Array Editable Region.
