Code editor input for blocks of code or mono-space plain text.
Code inputs are shown for inputs configured with the type code
, or for input keys matching:
code_block
*_code_block


code_block: |
Some content is better in monospace.
1 + 1 = 2
2 + 2 = 4

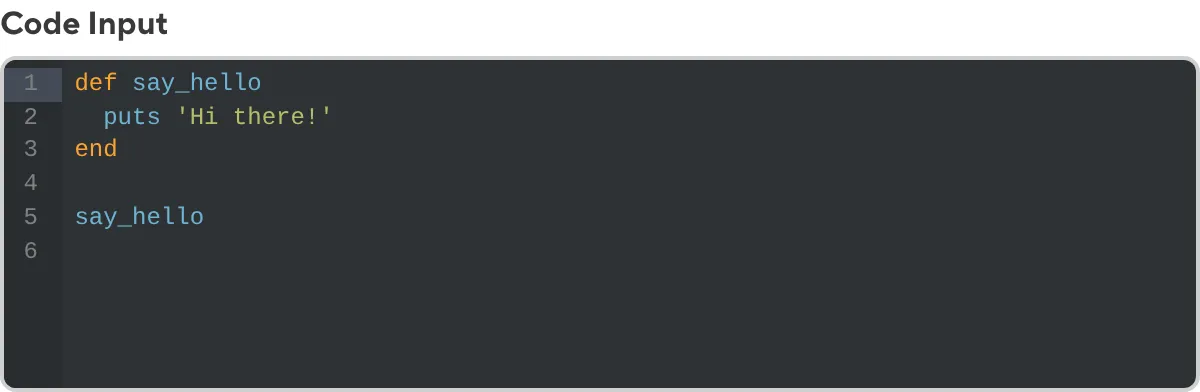

example_ruby_code_block: |
def say_hello
puts 'Hi there!'
end
say_hello
{
"code_block": "Some content is better in monospace.\n\n1 + 1 = 2\n2 + 2 = 4\n",
"example_ruby_code_block": "def say_hello\n puts 'Hi there!'\nend\n\nsay_hello\n"
}
code_block = """
Some content is better in monospace.
1 + 1 = 2
2 + 2 = 4
"""
example_ruby_code_block = """
def say_hello
puts 'Hi there!'
end
say_hello
"""
snippet: echo hello
_inputs:
snippet:
type: code
{
"snippet": "echo hello",
"_inputs": {
"snippet": {
"type": "code"
}
}
}
snippet = "echo hello"
[_inputs.snippet]
type = "code"
Options#
Code input options are configured with options
inside an _inputs
entry.
snippet: echo hello
_inputs:
snippet:
type: code
options:
tab_size: 4
theme: solarized_dark
syntax: sh
show_gutter: false
{
"snippet": "echo hello",
"_inputs": {
"snippet": {
"type": "code",
"options": {
"tab_size": 4,
"theme": "solarized_dark",
"syntax": "sh",
"show_gutter": false
}
}
}
}
snippet = "echo hello"
[_inputs.snippet]
type = "code"
[_inputs.snippet.options]
tab_size = 4
theme = "solarized_dark"
syntax = "sh"
show_gutter = false
Code inputs have the following options available:
Sets the maximum number of visible lines for this input, effectively controlling maximum height. When the containing text exceeds this number, the input becomes a scroll area. Defaults to 30
.
Sets the minimum number of visible lines for this input, effectively controlling initial height. When the containing text exceeds this number, the input grows line by line to the lines defined by max_visible_lines
. Defaults to 10
.
Defines how many spaces lines are auto indented by, and how many spaces tabs are shown as. Optional, defaults to 2
.

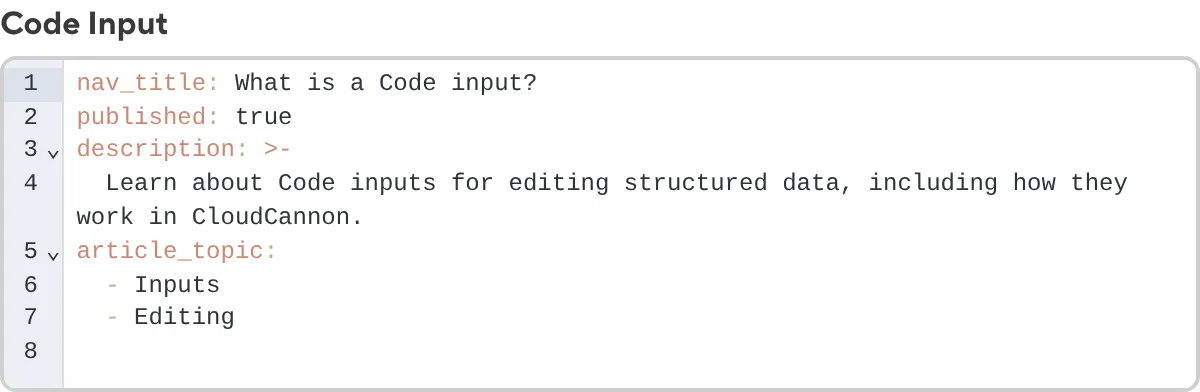

Changes the colors scheme for syntax highlighting in the editor. Only used if syntax
is set. Optional, defaults to monokai
. Must be one of:
ambiance
chaos
chrome
clouds
clouds_midnight
cobalt
crimson_editor
dawn
dracula
dreamweaver
eclipse
github
gob
gruvbox
idle_fingers
iplastic
katzenmilch
kr_theme
kuroir
merbivore
merbivore_soft
mono_industrial
monokai
nord_dark
pastel_on_dark
solarized_dark
solarized_light
sqlserver
terminal
textmate
tomorrow
tomorrow_night
tomorrow_night_blue
tomorrow_night_bright
tomorrow_night_eighties
twilight
vibrant_ink
xcode
Toggles displaying line numbers and code folding controls in the editor. Optional, defaults to true
.
Changes how the editor parses your content for syntax highlighting. Should be set to the language of the code going into the input. Optional, has no default. Must be one of:
abap
abc
actionscript
ada
alda
apache_conf
apex
applescript
aql
asciidoc
asl
assembly_x86
autohotkey
batchfile
c9search
c_cpp
cirru
clojure
cobol
coffee
coldfusion
crystal
csharp
csound_document
csound_orchestra
csound_score
csp
css
curly
d
dart
diff
django
dockerfile
dot
drools
edifact
eiffel
ejs
elixir
elm
erlang
forth
fortran
fsharp
fsl
ftl
gcode
gherkin
gitignore
glsl
gobstones
golang
graphqlschema
groovy
haml
handlebars
haskell
haskell_cabal
haxe
hjson
html
html_elixir
html_ruby
ini
io
jack
jade
java
javascript
json
json5
jsoniq
jsp
jssm
jsx
julia
kotlin
latex
less
liquid
lisp
livescript
logiql
logtalk
lsl
lua
luapage
lucene
makefile
markdown
mask
matlab
maze
mediawiki
mel
mixal
mushcode
mysql
nginx
nim
nix
nsis
nunjucks
objectivec
ocaml
pascal
perl
perl6
pgsql
php
php_laravel_blade
pig
plain_text
powershell
praat
prisma
prolog
properties
protobuf
puppet
python
qml
r
razor
rdoc
red
redshift
rhtml
rst
ruby
rust
sass
scad
scala
scheme
scss
sh
sjs
slim
smarty
snippets
soy_template
space
sparql
sql
sqlserver
stylus
svg
swift
tcl
terraform
tex
text
textile
toml
tsx
turtle
twig
typescript
vala
vbscript
velocity
verilog
vhdl
visualforce
wollok
xml
xquery
yaml
zeek
Alternatively, you can configure syntax
with the naming convention as well, syntax
is assumed to be the section preceding the normalized _code_block
suffix (e.g. my_javascript_code_block
for javascript
, or rubyCodeBlock
for ruby
).
Set how an ‘empty’ value will be saved. Does not apply to existing empty values. Can be one of the following:
string
- an empty value for this input will be stored as""
.null
- an empty value for this input will be stored as a null value (default). This does not apply to TOML files.
Valid values#
Documented below are the valid formats for code inputs.
The lists of examples are non-exhaustive.
Empty/null value:
code:
Any valid string (quoted or unquoted):
code: ""
code: ''
code: any string
code: "any string"
code: 'any string'
Any valid multiline string:
-
code: >
multiline string -
code: >-
multiline string -
code: >+
multiline string -
code: |
multiline string -
code: |-
multiline string -
code: |+
multiline string
Any valid string:
code = ""
code = "any string"
Any valid escaped string:
code = ''
code = 'any string (literal)'
Any valid multiline string:
-
code = """
multiline string""" -
code = """\
multiline string (trimmed)
\""" -
code = '''
literal multiline string'''
Null value:
"code": null
Any valid string:
"code": ""
"code": "any string"
Any valid multiline string:
"code": "multiline \n string"
