Visually edit components

Many static websites use reusable code components (a.k.a., partials) ranging from a small snippet of HTML, to UI elements like a header, profile card, or an entire page layout.

You can use Component Editable Regions to re-render changes to your components in the Visual Editor. They are also required to edit Text or Image Editable Regions nested inside a component. Let's cover how to define one.

Install the integration for your SSG#

Unlike other types of Editable Region, Component Editable Regions need an integration, because CloudCannon re-renders your components in the browser rather than on a build server. Astro and Eleventy install an NPM package, Hugo installs a Hugo module, and sites built with React, Vue, or Svelte add a root component to your layout. You only need to do this once per Site. The @cloudcannon/editable-regions NPM package requires Node 20.19 or later.

npm install @cloudcannon/editable-regions

import editableRegions from "@cloudcannon/editable-regions/astro-integration";
import { defineConfig } from "astro/config";

export default defineConfig({
  integrations: [editableRegions()],
});

npm install @cloudcannon/editable-regions

import editableRegions from "@cloudcannon/editable-regions/eleventy";

export default function (eleventyConfig) {
  eleventyConfig.addPlugin(editableRegions);

  return {
    dir: { input: "src", includes: "_includes", output: "_site" },
  };
}

<script>
  if (window.inEditorMode) {
    import("/register-components.js").catch((error) => {
      console.warn("Failed to load CloudCannon component registration:", error);
    });
  }
</script>

hugo mod get github.com/CloudCannon/editable-regions@<version>

[module]
  [[module.imports]]
    path = "github.com/CloudCannon/editable-regions"
    version = "<version>"

{{ partial "editable-regions" . }}

npm install @cloudcannon/editable-regions

import { EditableRegions } from "@cloudcannon/editable-regions/react";

export default function RootLayout({ children }) {
  return (
    <html lang="en">
      <body>
        <EditableRegions tag="main">{children}</EditableRegions>
      </body>
    </html>
  );
}

Your SSG may need more than this to build in the Visual Editor. For Astro framework renderers, Eleventy's includeWith tag, Hugo module vendoring and version requirements, Nuxt's custom element setting, and static export settings for Next.js, Nuxt, and SvelteKit, please read our documentation on configuring Component Editable Regions. You can also visit CloudCannon's GitHub repository for the Editable Regions NPM package.

Register your components#

Registering a component tells CloudCannon which component a data-component value refers to, and that it should be bundled for client-side use in the Visual Editor. Astro and the JavaScript frameworks need you to register each component by name. Eleventy and Hugo work out the name from your include and partial names, so they have no registration step.

import { registerAstroComponent } from '@cloudcannon/editable-regions/astro';
import '@cloudcannon/editable-regions/astro-react-renderer';
import CTA from '../components/CTA.astro';

// Register your components
registerAstroComponent('cta', CTA);

import { registerReactComponent } from '@cloudcannon/editable-regions/react';
import MyComponent from './MyComponent.jsx';

registerReactComponent('my_component', MyComponent);

import { registerVueComponent } from "@cloudcannon/editable-regions/vue";
import CTA from "../components/CTA.vue";

export default defineNuxtPlugin(() => {
  if (window.inEditorMode) {
    registerVueComponent('cta', CTA);
  }
});

Components in layout files#

Components use templating to reference structured data keys. Layout files then reference a component file. At build time, CloudCannon populates the component with the correct values and outputs it to the layout's HTML webpage.

Let's take a look at an example.

This file is a blog post, containing the cta object in the front matter, and the structured data keys description, link, buttonText, and buttonColor.

---
title: 'First post'
author: 'C. Kent'
heroImage: '../../assets/blog-banner.jpg'
heroImageTitle: 'Blog gradient'
heroImageAlt: 'An eye-catching color gradient banner.'
cta:
  description: "Need a little more help? Send a message to our friendly support team."
  link: "https://cloudcannon.com/support/"
  buttonText: "Send a message"
  buttonColor: "#034AD8"
---

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Vitae ultricies leo integer malesuada nunc vel risus commodo viverra.

Here is an excerpt from our blog layout file, containing a call-to-action component called CTA at the bottom of every blog post.

---
import CTA from '../components/CTA.astro';
---

<html lang="en">
	<body>
		<main>
			<article>
                <!-- Blog HTML here -->
			</article>
			<CTA {...Astro.props.cta} />
		</main>
	</body>
</html>

Finally, here's our component layout file, which contains HTML for the component and templating to populate elements with values from each blog file.

---
const { description, link, buttonText, buttonColor } = Astro.props;
---

<p>{description}</p>
<a href={link}>
    <button style={`background-color: ${buttonColor}`}>{buttonText}</button>
</a>

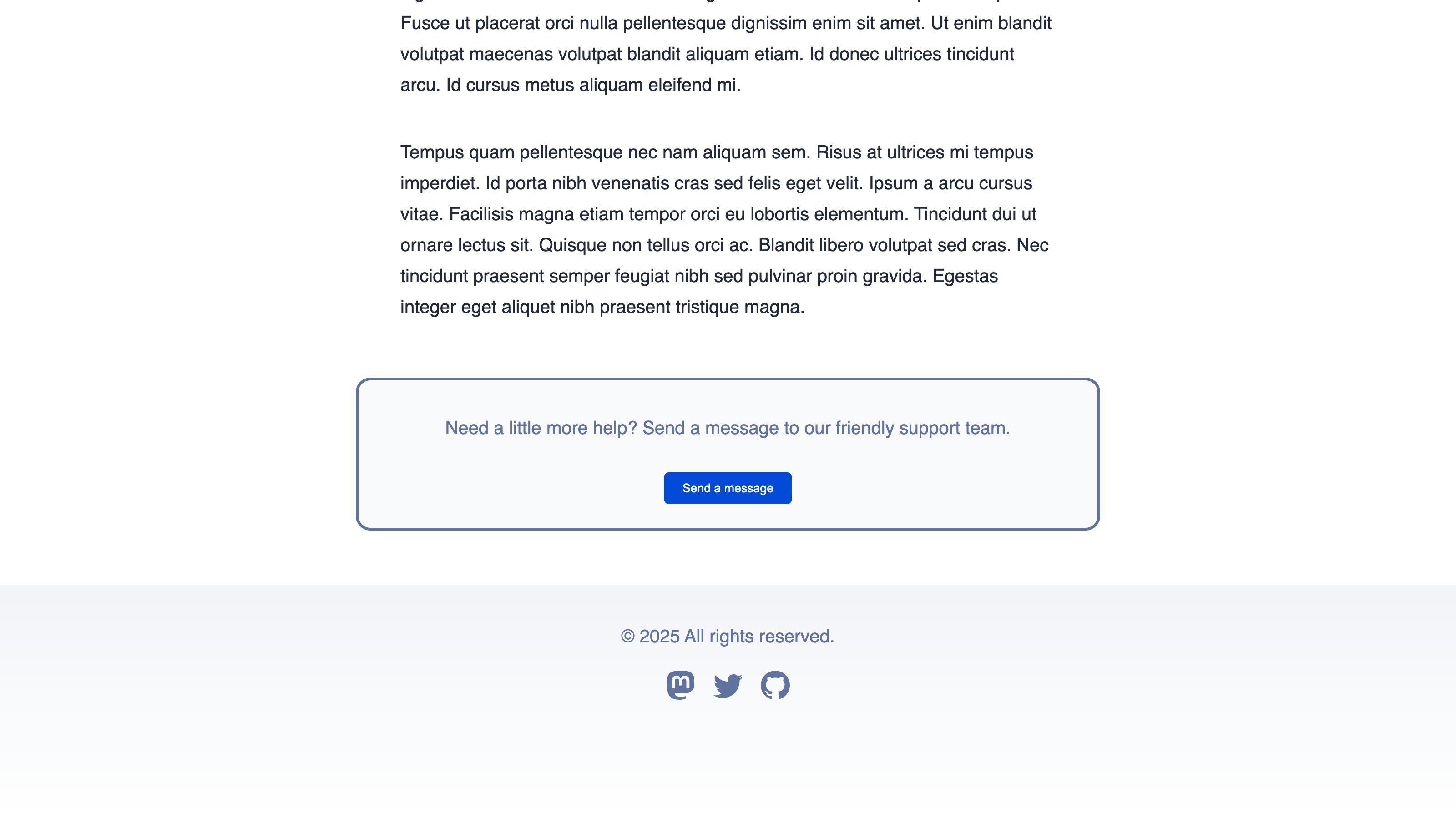

Together, these files output a webpage that looks like this:

In this example, the <CTA> component uses the properties in the cta object in each blog post. We can add a Component Editable Region to our layout file to enable the Visual Editor to re-render any changes made with the Data Panel or sidebar.

First you need to import the component registration file you made earlier with a <script> HTML element. The <script> element should go inside the <body> element of your layout, which could be a different file depending on how your Site is structured (e.g., you may have a base layout file that all your other layouts reference). When you import the component registration file, you can also add instructions to check if your browser window is in Editor Mode (i.e., your webpage is open in CloudCannon's Visual Editor) and add an error warning.

Next, since the <CTA> component lacks an appropriate parent DOM element, you should wrap it in the <editable-component> web component. Our Component Editable Region also needs a data-prop to define where our component data is stored which, in this case, will be the cta front matter object in our blog post.

Finally, you need to add the data-component HTML attribute to define which registered component we are using which, in this case, is also called cta.

Here's what our blog layout code should look like:

<html lang="en">
  <body>
    <script>
      if (window.inEditorMode) {
        import("../scripts/register-components.js").catch((error) => {
          console.warn("Failed to load CloudCannon component registration:", error);
        });
      }
    </script>
    <main>
      <article>
        <!-- Blog HTML here -->
      </article>
      <editable-component data-prop="cta" data-component="cta">
        <CTA {...Astro.props.cta} />
      </editable-component>
    </main>
  </body>
</html>

If we were to save and rebuild our Site now, the Visual Editor would allow you to re-render the CTA component when you edit values using the Data Panel or sidebar, but would not allow inline editing for the text values description and buttonText. To achieve this, we also need to add Text Editable Regions to the CTA component file.

Here's what our CTA component code should look like:

---
const { description, link, buttonText, buttonColor } = Astro.props;
---

<p data-editable="text" data-prop="description">{description}</p>
<a href={link}>
    <button data-editable="text" data-prop="buttonText" style={`background-color: ${buttonColor}`}>{buttonText}</button>
</a>

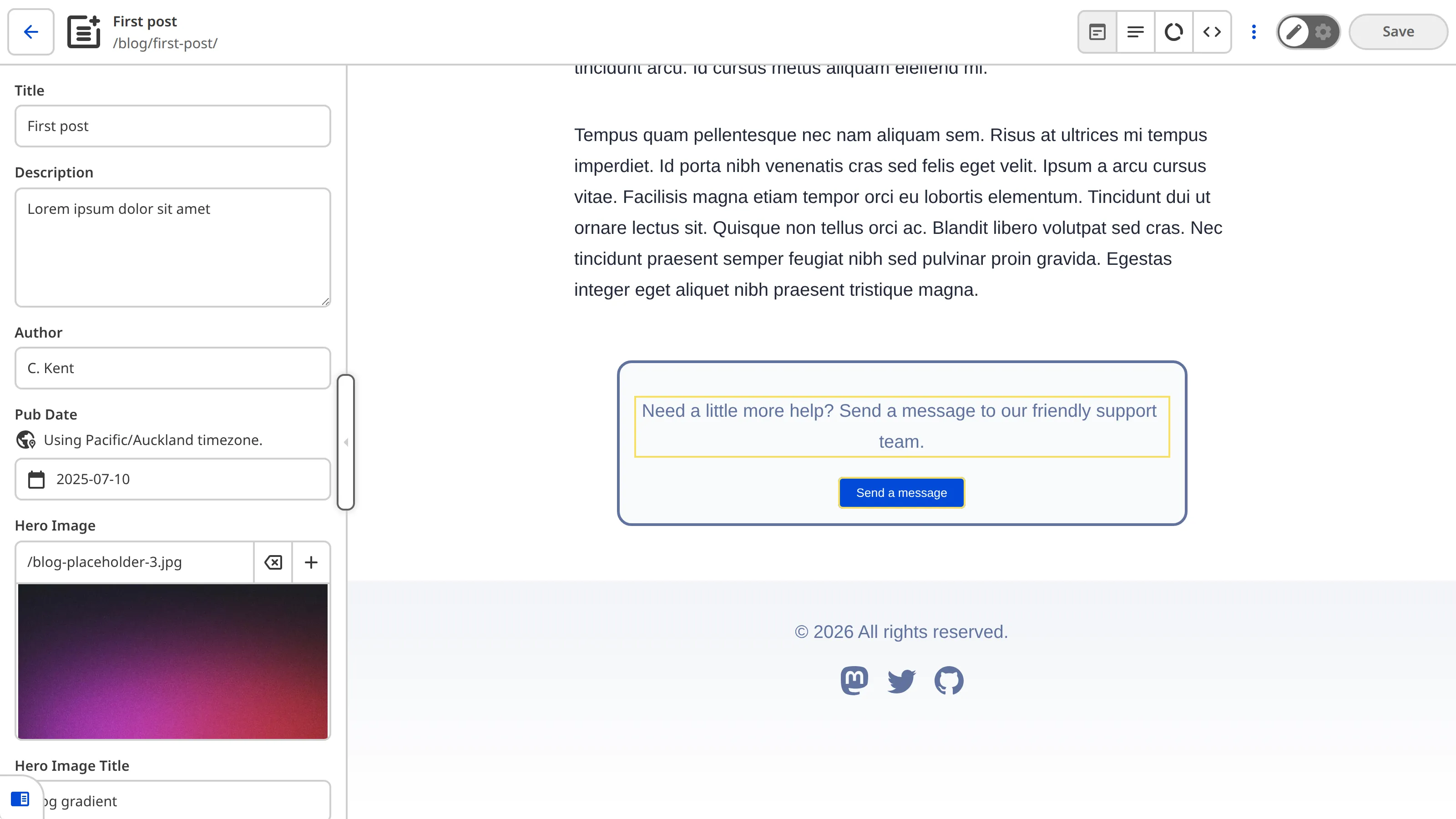

Once we save and rebuild our Site, CloudCannon will show a yellow Editable Region box around all the content inside the <CTA> component in the Visual Editor. There are also two Text Editable Regions around the description and button text.

CloudCannon will show an edit icon in the top right of the Component Editable Region. Clicking the edit icon opens a Data Panel with inputs for all four structured data keys in the component: description, link, buttonText, and buttonColor. The edit icon only appears if your Component Editable Region has a data-prop or data-prop-* HTML attribute.

Common errors#

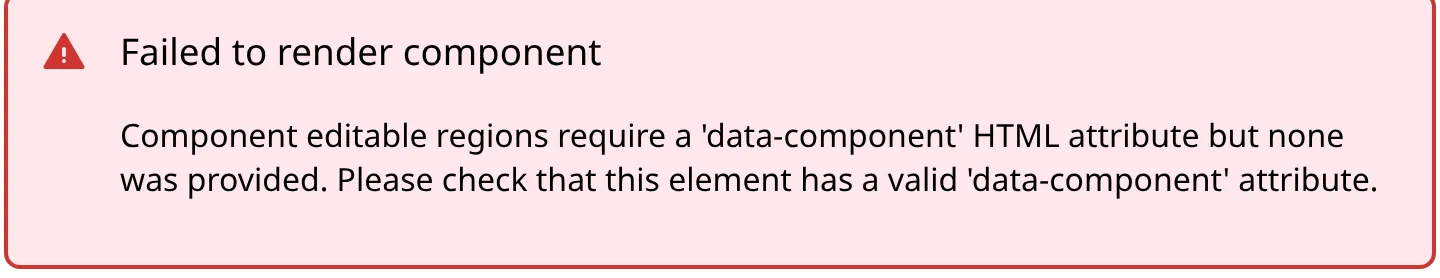

If you accidentally misconfigure your Editable Regions, CloudCannon will replace them in the Visual Editor with a red Error Card headed Failed to render component, or Failed to render component: [Component Name] if your component fails to render, followed by a message describing the problem.

Here are a few common errors you might encounter with Component Editable Regions:

• You did not define the data-component HTML attribute.
• You reference a component that does not exist, or has not been registered.
• Your component throws an error while rendering, or does not return HTML.

In the next step of this guide, we'll cover how to define Editable Regions for complex arrays.
